Yamata FY5318 Heavy Duty Single Needle Upholstery Walking Foot Top Bottom Feed Industrial Sewing Machine With Table and Servo Motor
Yamata FY5318 Heavy Duty Single Needle Upholstery Walking Foot Top Bottom Feed Industrial Sewing Machine With Table and Servo Motor
reseller raitng
Product Pictures

Yamata FY5318 Heavy Duty Single Needle Upholstery Walking Foot Top Bottom Feed Industrial Sewing Machine With Table and Servo Motor

SKU: FY-5318
Weight: 1 lbs
Vendor: FEIYUE
Our Price: $1299.99
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

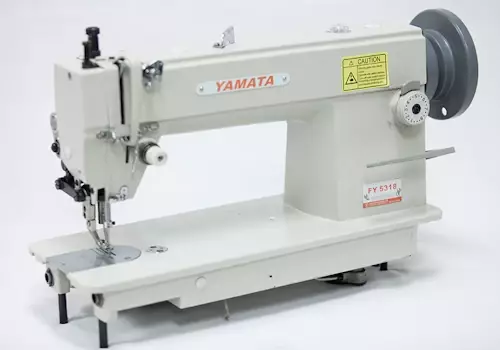

Yamata FY5318

Heavy Duty Single Needle Upholstery Walking Foot Top Bottom Feed Industrial Sewing Machine With Table, Legs, Servo Motor, and LED Lamp

Yamata FY5318

Heavy Duty Single Needle Upholstery Walking Foot Top Bottom Feed Industrial Sewing Machine

The FY-5318 has a full 7/16 inch presser foot lifting capability and will stitch to a thickness of 5/16 of an inch through some of the heaviest materials.

This machine is for stitching the toughest of fabrics that allow you to stitch leather articles, canvas, handbags, camping goods, and even jeans, with

this Feiyue Yamata walking foot machine. Get a high-speed performance with the Feiyue Yamata FY5318 as it boasts a 3,300 spm. The 1mm to 8mm stitch length lets you complete the bulky task instantly with this Feiyue Yamata walking foot machine. Sewing materials up to 3/8 inches thick this Feiyue Yamata sewing machine delivers efficient performance for heavy or lightweight fabrics.

Sewing materials up to 3/8 inches thick, this Feiyue Yamata sewing machine delivers an efficient performance for heavyweight or lightweight fabrics.

MACHINE FEATURES:

  • Extra long stitch – 2-1/2 S.P.I. (10mm)
  • Large Bobbin. Bobbin can be changed without removing the object being sewn
  • Thread release finger (for heavy thread)
  • High presser foot lift – 9/16″ (14mm)
  • Centralized arm lubrication. Reservoir-oiled hook with micrometric control valve
  • All gear-driven hook mechanisms. Large horizontal axis hook
  • Safety clutch with push-button re-engagement
  • Adjustable reverse stitching can be the same length as forward stitch
  • Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
  • Walking feet, needles, and other attachments interchangeable with Consew model 226R-2, 255RB-2
  • Needle plate, foot, and feed dog can be changed for special operations
  • Standard attachments are easily installed
  • Compound feed, walking foot mechanism ensures even feeding of material
  • Locking stitch regulator prevents changes in stitch length from vibration

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Max Speed: (S.P.M.) 3300
  • Clearance Under Presser Foot: 9/16″ (14mm)
  • Stitch Length: 2 1/2 s.p.i. (10mm)
  • Large Work Space: 10 5/16″ (258mm)
  • Needle: 135 x 17
  • Bobbin: Pre-Wound M
  • Bed Size: 7″ 18 7/8″ (178mm x 480mm)
  • Stitch Type: 301
  • Gross Weight: 82 lbs. (37.25 kgs)
  • Total Carton Size: 23″ x 10″ x 22″
  • Needle Bar Stroke: 1 5/16″ (33mm)Hook 18033
  • Weight: 76 kg
  • Dimensions:  26 × 12 × 22 cm

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
