New-Tech GC-1790 Automatic Computerized Buttonhole Machine with Table and Built-in Direct Drive Servo Motor
New-Tech GC-1790 Automatic Computerized Buttonhole Machine with Table and Built-in Direct Drive Servo Motor
reseller raitng

New-Tech GC-1790 Automatic Computerized Buttonhole Machine with Table and Built-in Direct Drive Servo Motor

SKU: GC-1790
Weight: 1 lbs
Vendor: New-Tech
Our Price: $4999.99
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

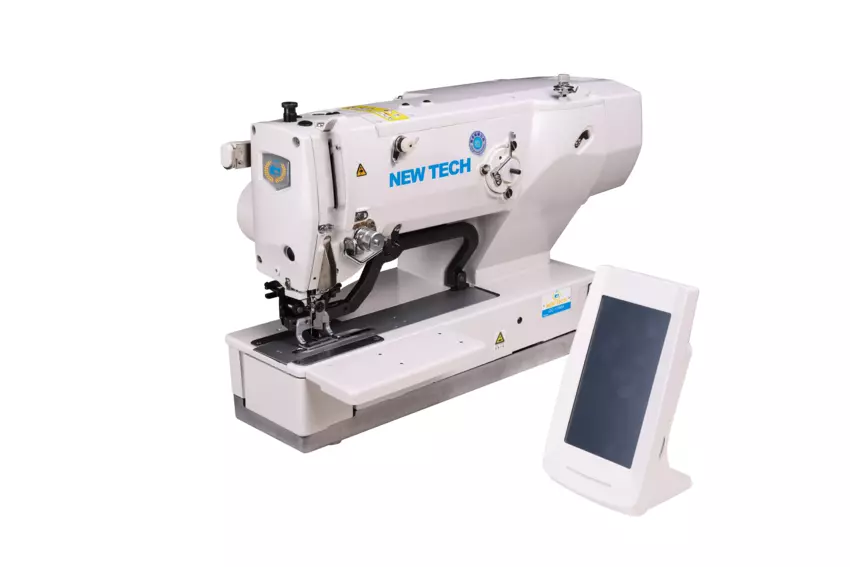

New-Tech GC-1790

Automatic Computerized Buttonhole Machine with Table, Legs, Built-in Direct Drive Servo Motor, and LED Lamp

The New-Tech GC-1790 computerized, direct drive, automatic, buttonhole machine is one of the most advanced machines of its kind. This machine is completely automatic, no gears to change, no levers to set, no tensioner to adjust. All of the JK-T1790B's parameters can be set via the touch screen panel greatly increasing operator efficiency.

The New-Tech GC-1790 comes equipped with 30 pre-programmed buttonhole patterns and can accomodate an additional 200 user created buttonhole patterns to greatly extend the usefulness of the machine. Perfect for workshop/manufacturing operations who sew various garment types. For example, switching between dress shirts, polo shirts or suits; these all require different tension, buttonhole length, stitch density and even buttonhole shapes. Once a buttonhole pattern is defined and saved to memory, it can be instantly recalled with the touch of a button greatly increasing productivity. The operator no longer has to adjust the machine manually.

The New-Tech GC-1790 also comes standard with automatic foot lifter and automatic thread trimmer (with improved cutter reducing the amount of thread remaining after cutting) to further increase operator efficiency and reduce fatigue.

MACHINE FEATURES:

  • Touch Screen Control Panel
  • Direct Drive AC Servo Motor
  • Adjustable Sewing Speed
  • 30 Pre-Programmed Buttonhole Patterns
  • 200 User Programmable Buttonhole Patterns
  • Multi-Cut Programmable Knife
  • Purl or Whip Buttonhole Stitch
  • Automatic Foot Lifter
  • Automatic Thread Trimmer, Improved
  • Electronic Adjustable Thread Tension
  • Semi-Dry Lubrication System
  • Integrated Bobbin Winder
  • Integrated Adjustable LED
  • Complete with Table and Stand

MACHINE SPECIFICATIONS:

  • Application: Lightweight - Medium Weight
  • Feed Type: Multi Axis Clamp
  • Max. Sewing Speed: 4,200 Stitches per minute
  • Buttonhole Width: 1/4" - 1 1/4"
  • Voltage: 220V
  • Motor: Intergrated Dirct Drive AC Servo
  • Lubrication System: Semi-Dry
  • Oil: ISO VG7
  • Presser Foot Height: 17mm
  • Needle: DPx5 #11- 14
  • Bobbin Winder: Integrated
  • LightingIntegrated 3-way adjustable LED

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

DIRECT-DRIVE SERVO MOTOR:

Direct-drive means no external motor is attached to the machine table. The servo motor is housed inside the machine and has no mechanisms, such as a V-belt, which transmits vibrations and noise.
