Large Roller Foot With Needle Plate & Feed Dogs - Singer

Large Roller Foot With Needle Plate & Feed Dogs - Singer

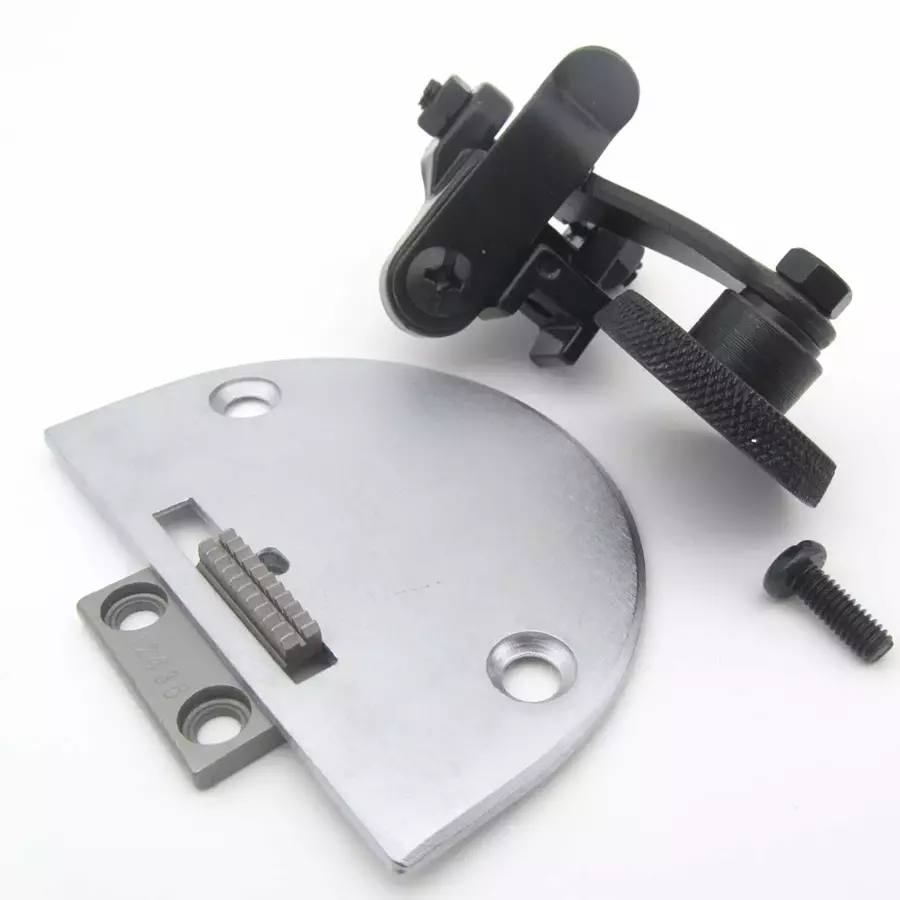

Part Number

• 12438 - Needle Plate
• 12436 - Feed Dog
• 12267 - Large Roller Foot

These Serrated Roller Presser Feet are perfect for sewing Leather, Nylon, Plastics, Foam Rubber, Laminated Fabric/Material, etc. Significantly improves feeding of these materials through your machine Allows “Free-Style” stitching with very sharp turns Improves visibility of stitches while sewing shapes, box and bar/flag tacks Attaches simply; similar to standard presser foot For improved control and consistent stitches, with new Feeder, requires: Centering of the Feeder stroke within the Feeder slots in the Needle Plate. This is required if your Feeder is hitting the Needle Plate in either the front or back during the feeding motion. To make this adjustment, loosen either of the screws under the Feeder (NOT the Feeder screws themselves). Only loosen one or both of these screws enough to allow the Feeder to be moved with your fingers slightly from front to back within the Needle Plate Feeder slots. Do NOT loosen so much that there is no feeding motion. Turn the Hand-Wheel slowly in the normal direction to make certain that the Feeder is centered within the Needle Plate Feeder slots. Tighten screws after Feeder centered. Also note that the height of the Feeder may also require adjustment.

MACHINE COMPATIBILITY:

• Artisan Models:  196R, 5550N, 8500N, ZJ-100
• Brother Models:  B705, B707, B715, B716, B735, B737, B738, B745, B755, B757, B758, B767, B781, PQ1300, PQ1500
• Consew Models:  30, 98, 99, 102, 103, 105, 210, 217, 218, 219, 220, 230, 231, 290, 310, 2230, 7360R-1
• Econsew Models:  DDL-5550, DDL-8500, DDL-8700
• Feiyue Models:  8500, 8700
• Gemsy Models:  8700
• Janome Models:  1600P, 1600DB, 1600DBX
• JUKI Models:  DDL-127, DDL-227, DDL-500, DDL-552, DDL-553, DDL-555, DDL-5550, DDL-5600, DDL-8300, DDL-8500, DDL-8700, DDL-8900, DDL-9000, TL-98E, TL-98Q, TL-2000Qi, TL-2010Q
• Mitsubishi Models:  DB-120, DB-121, DB-122, DB-126, DB-130, DB-170, DB-189, DB-199, LS2-130, LS2-150, LS2-180, LS2-190, LS2-1130
• Necchi Models:  BU, Supernova, and others with the high shank presser foot system
• Reliable Models:  MSK-8800, MSK-8550M, MSK-8870M
• Rex Models:  RX8500
• Singer Models:  31-15, 95, 96, 120U, 121C, 121D, 188K, 191D, 195K, 196K, 241, 251, 281, 366K, 400W, 402W, 451K, 491D, 591D, 600W, 660A, 691D, 770D, 771D, 2191, 2491D
• Sunstar Models:  KM-123A, KM-123B, KM-137A, KM-137B, KM-146BL, KM-250
• Tacsew Models:  5550, 8500, 8500-T, T8700
• Taiko Models:  TK-505, TK-510
• Yamata Models:  FY8500, FY8700
• Zoje Models:  ZJ15-1, ZJ80-1, ZJ999-1, ZJ999-5, ZJ5580, ZJ5580-D3, ZJ8500-D3, ZJ8500N

And many other comparable industrial lockstitch sewing machines.

Presser Foot Shank Type:  High Shank
