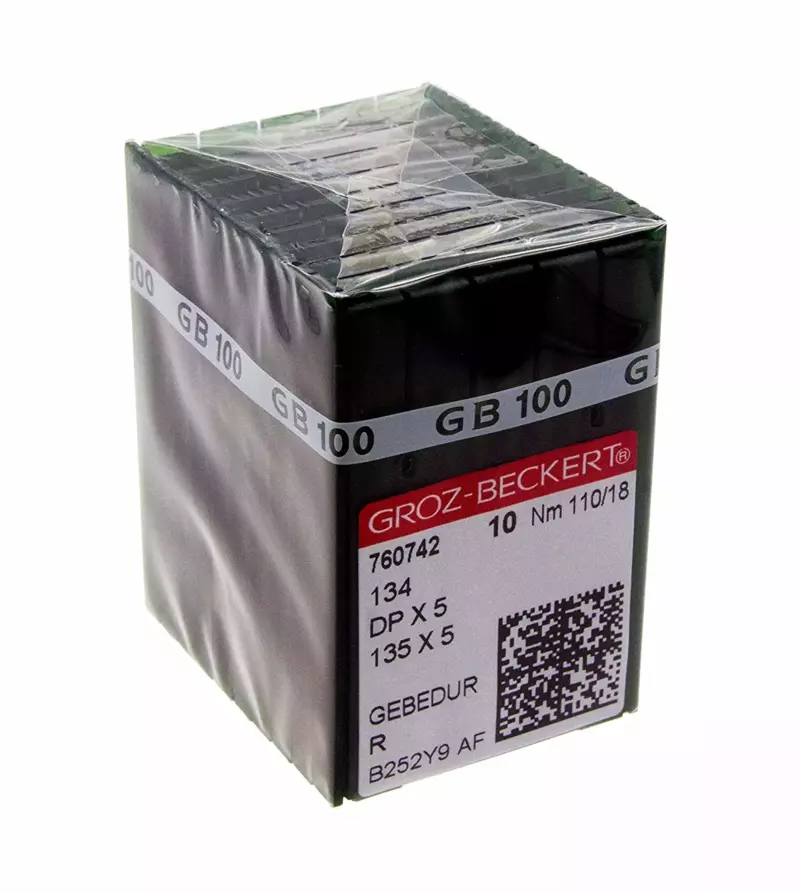

GROZ-BECKERT - 134/DPX5/135X5 GEBEDUR Sewing Machine Needles

GROZ-BECKERT - 134/DPX5/135X5 GEBEDUR Sewing Machine Needles

Point style:  R
Needle size - Part Number:

• 65 / 9 - 762782
• 70 / 10 - 761982
• 75 / 11 - 763215
• 80 / 12 - 761952
• 90 / 14 - 760725 - Alternate Part Number - 760722
• 100 /16 - 760732
• 110 / 18 - 760742

Coating:  GEBEDUR - Titanium Nitride Coated
Length butt to eye:  366
Shank diameter:  200
Packing Unit:  Sold in packs 100

POINT STYLE

Regular Round Point
Standard for lockstitch (FST 301); woven fabrics, artificial leather, coated woven fabrics

• Standard round point; cloth point with no cutting effect
• Largely straight, somewhat irregular seam appearance
• Thread slightly elevated
• Suitable for medium to long stitches

Application
Shirts, trousers, various types of garments

• Soft leather (clothing leather)
• Multi-directional applications

Example
Clothing, vehicle seats (also for foils and coated materials)

Other point designations
SET, RD

GEBEDUR® – needles with titanium nitride coating

In demanding sewing processes, for instance when sewing hard materials and material combinations, needle wear often occurs, particularly in the point and eye area. The special GEBEDUR® surface coating provides the needle with increased wear resistance, allowing it to withstand extreme conditions much longer.

The special features

• Titanium nitride surface coating
• Higher of hardness than with standard needles

The advantages

• Higher protection against wear and damage, primarily in the point and eye area
• Consistently high standard of seam quality
• Longer service life of needles
• Increased productivity

Due to the above specified characteristics, certain special application needles such as the SAN® 5 or the SAN® 6 are coated with GEBEDUR® as standard.
