Eastman CD3H Hot Cloth Drill

Eastman CD3H Hot Cloth Drill

Eastman CD3H Hot Cloth Drill
SKU: CD3H
Weight: 1 lbs
Vendor: Eastman
Our Price: $2009.00
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.
reseller raitng

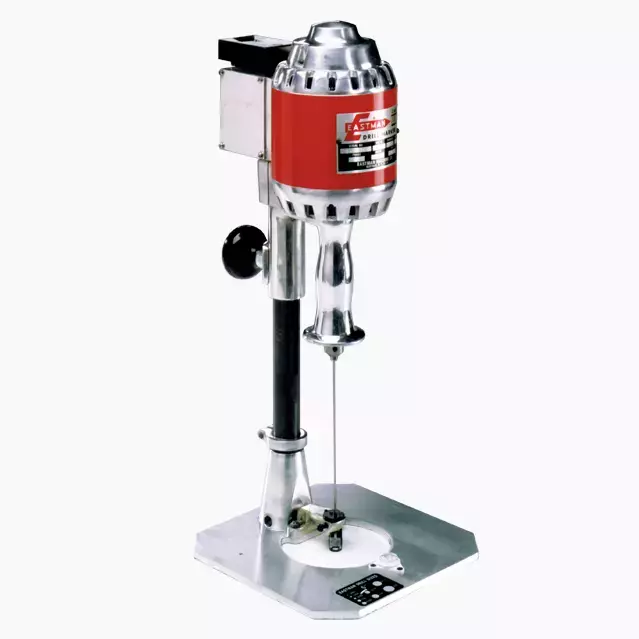

Eastman CD3H Hot Cloth Drill

The Hot Cloth drill leaves identifiable marks on loosely woven, or knit fabrics, where an ordinary drill mark would not be detected.

The cloth drill fuses tightly woven synthetic materials, throughout the lay, thereby eliminating distortion in the marker.

FEATURES:

  • Drills holes through numerous layers of fabric to indicate buttonholes, darts or other markings
  • Leaves identifiable marks on loosely woven materials or knit fabrics where an ordinary drill mark would not be detected
  • Fuses tightly woven synthetic materials throughout the lay, thereby eliminating distortion in the marker
  • Variable heat setting

SPECIFICATIONS:

Motors

110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz

Horsepower

0.20hp, 1ph 0.34hp, 3ph

Weight

18 lbs. (8.16 kg)

Drill Tips Available

Standard: Taper Point Optional: Diamond Point, Open End Awl, Closed Awl, PTFE Coated

Drill Diameter

English Metric 3/64 in 1.19mm 5/64 in 1.98mm 3/32 in 2.38mm 1/8 in 3.18mm 5/32 in 3.97mm 3/16 in 4.76mm 1/4 in 6.35mm 5/16 in 7.93mm 3/8 in 9.52mm

Drilling Capacity

6 in. (15.2cm) 8 in. (20.3cm) 11 in. (27.9cm)
