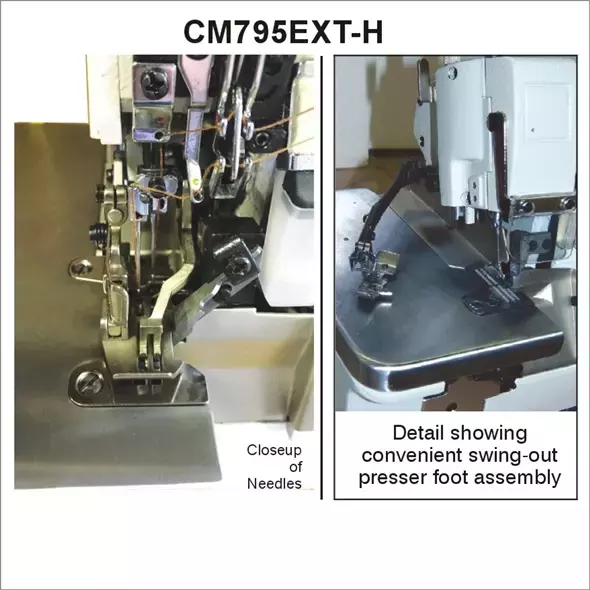

Consew CM795EXT-H 2 Needle 5 Thread High Speed Overlock Industrial Sewing Machine With Table and Servo Motor
Consew CM795EXT-H 2 Needle 5 Thread High Speed Overlock Industrial Sewing Machine With Table and Servo Motor
reseller raitng
Product Pictures

Consew CM795EXT-H 2 Needle 5 Thread High Speed Overlock Industrial Sewing Machine With Table and Servo Motor

SKU: CM795EXT-H
Weight: 90 lbs
Vendor: Consew
There will be a surcharge of $150 if shipped to a residential address

Consew CM795EXT-H Double Needle 5 Thread High Speed Overlock Machine Comes With Table, Legs, Servo Motor and LED Lamp

For overlock sewing of medium to heavyweight materials with a safety stitch. With Fully Automatic Lubrication, Differential Feed, Pushbutton Stitch Regulator

MACHINE APPLICATIONS:

Model CM795EXT-H - True Safety Stitch - suitable for sewing products such as men's, ladies' and children's wear, especially coats for children and women. Designed for general seaming on woven fabrics. Also suitable for edging vinyl, canvas and upholstery fabrics

MACHINE FEATURES:

  • Speed, Max. up to 7000 s.p.m. (See machine specifications below)
  • Fully automatic lubrication with visual flow controls
  • Lubricating oil continuously filtered by replaceable filter
  • External cooling of oil supply
  • Differential feed
  • Push-button stitch regulator
  • Intermittent action possible
  • Standard type DC-27 needles
  • Reduced noise and vibration when operating at high speeds
  • Availabel options:
  • ET: Electric thread trimmer
    P3D: Pneumatic thread trimmer
    C: Back tacking

MACHINE SPECIFICATIONS:

  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Differential
  • Standard or Full Function: Standard Functions
  • Differential Ratio: 1 : 0.7 ~ 1.7
  • Workspace: Standard Workspace
  • Number of Threads: 4/5
  • Speed, Max (S.P.M.): 6500
  • Max Stitch Length: 3.8 mm
  • Presser Foot Lift: 5.5 mm
  • Needle Used: DC x 27 size 14
  • Standard Distance Between Needles: 2 mm standard
  • Stitch Type: True Safety Stitch

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
