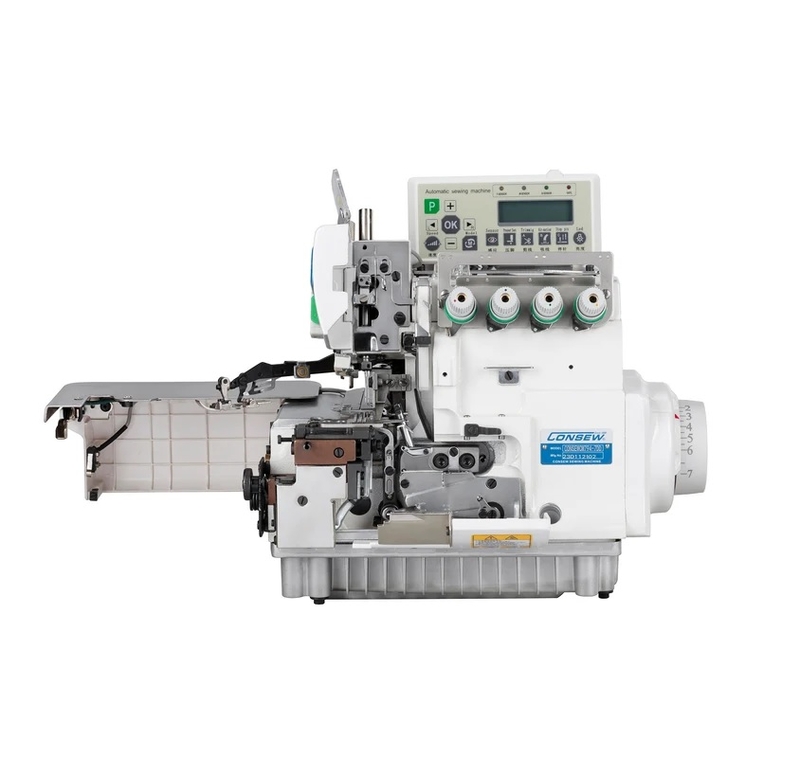

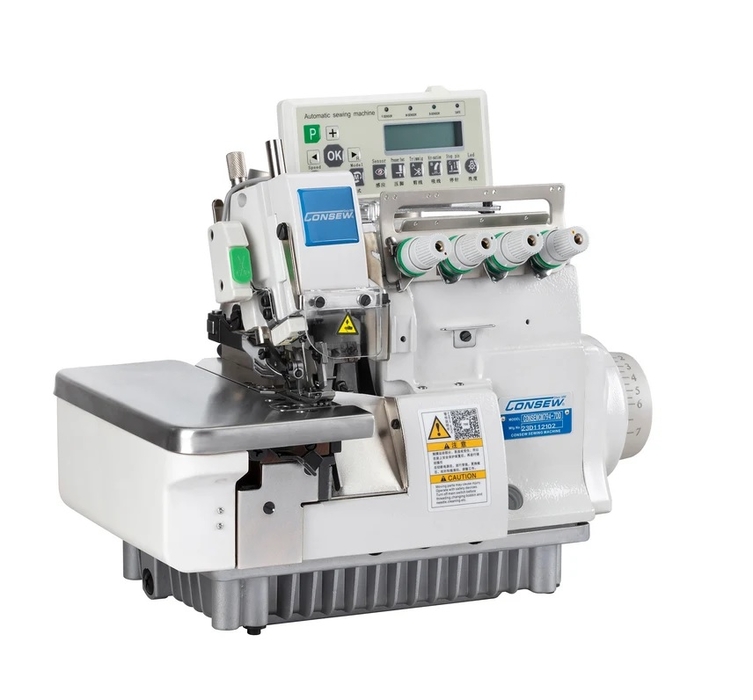

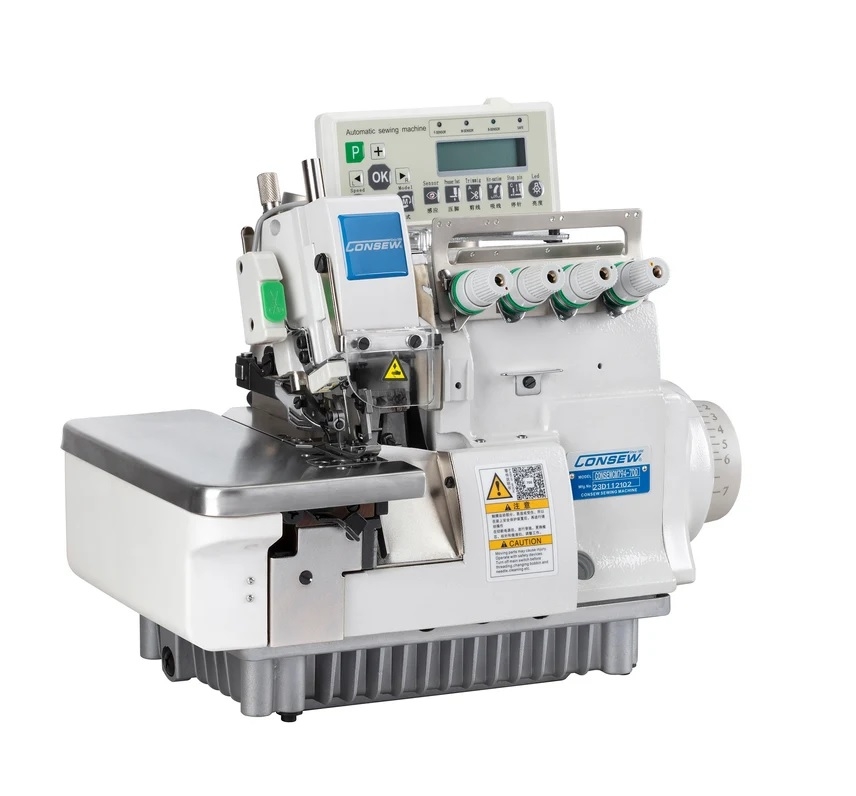

Consew CM794-7-DD 2 Needle 4 Thread High Speed Overlock Industrial Sewing Machine With Table and Servo Motor

Consew CM794-7-DD Double Needle 4 Thread High Speed Overlock Machine Comes With Table, Legs, Servo Motor and LED Lamp

For overlock sewing of a variety of materials (knits, wovens, vinyls)
With:  Fully Automatic Lubrication, Adjustable Differential Feed, Stitch Regulator, Fabric Edge Trimmer, Swing-arm Guide

MACHINE APPLICATIONS:

Mock Safety Stitch - suitable for seaming sides and joining front and side panels on ladies' swim suits and childrens' play pants; closing sides on ladies' panties; setting sleeves on ladies' uniform dresses and knitted sport shirts; sewing cuffs to sleeves and attaching pocket pieces to front and back on ladies' robes; setting body lining on men's raincoats, etc.  Equipped to handle medium to heavy weight materials and designed for sewing stretchable materials or fabrics which need elasticity in stitching.

MACHINE FEATURES:

• Speed, Max. up to 6500 s.p.m. (See machine specifications below)
• Fully automatic lubrication with visual flow controls
• Lubricating oil continuously filtered by replaceable filter
• External cooling of oil supply
• Differential feed
• Push-button stitch regulator
• Intermittent action possible
• Standard type DC-27 needles
• Reduced noise and vibration when operating at high speeds
• Available Options: ET - Electric thread trimmer  /  P3D - Pneumatic thread trimmer /  C - Back tacking

MACHINE SPECIFICATIONS:

• Number of Needles: 2 (Double)
• Feeding Mechanism: Differential

• Standard or Full Function: Standard Functions
• Differential Ratio: 1 : 0.7 ~ 1.7
• Workspace: Standard Workspace
• Number of Threads: 4/5
• Speed, Max (S.P.M.): 6500
• Max Stitch Length: 3.8 mm
• Presser Foot Lift: 5.5 mm
• Needle Used: DC x 27 size 14
• Standard Distance Between Needles: 2 mm standard
• Stitch Type: True Safety Stitch

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
