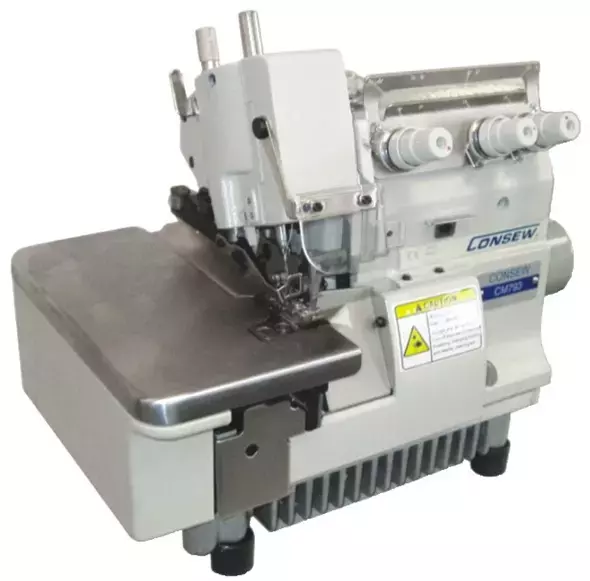

Consew CM793 Single Needle 3 Thread High Speed Overlock Industrial Sewing Machine With Table and Servo Motor

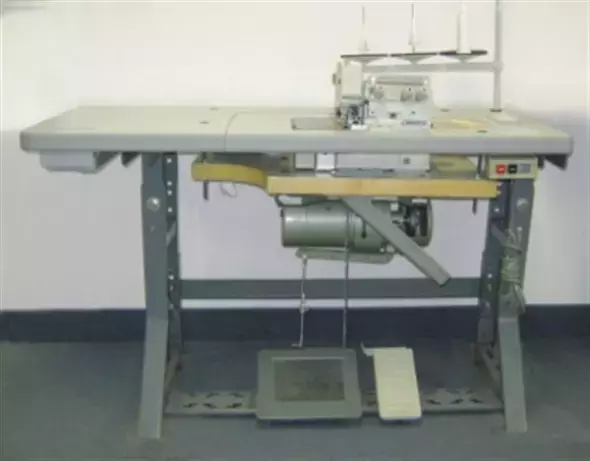

Consew CM793 Single Needle 3 Thread High Speed Overlock Machine Comes With Table, Legs, Servo Motor and LED Lamp

For overlock sewing of light to heavyweight materials with Fully Automatic Lubrication, Differential Feed, Pushbutton Stitch Regulator.

MACHINE APPLICATIONS:

For general overedging such as hemming sleeves on men's knit underwear, closing shoulders for T-shirt, overedging net lining for tricot slips, closing skirt panel, attaching bodice and yoke for tricot slips etc.

MACHINE FEATURES:

• Speed, Max. up to 7000 s.p.m. (See machine specifications below)
• Fully automatic lubrication with visual flow controls
• Lubricating oil continuously filtered by replaceable filter
• External cooling of oil supply
• Differential feed
• Push-button stitch regulator
• Intermittent action possible
• Standard type DC-27 needles
• Reduced noise and vibration when operating at high speeds
• Available Options: ET - Electric thread trimmer / P3D - Pneumatic thread trimmer / C - Back tacking

MACHINE SPECIFICATIONS:

• Number of Needles: 1 (Single)
• Feeding Mechanism: Differential

• Standard or Full Function: Standard Functions
• Stitch Ratio: 1 : 0.7 ~ 1.7
• Workspace: Standard Workspace
• Number of Threads: 3
• Overedging Stitch Width: 4 mm
• Speed, Max (S.P.M.): 7000
• Max Stitch Length: 3.8 mm
• Presser Foot Lift: 5.5 mm
• Needle Used: DC x 27 size 11

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
