Consew 756R-3 Extra Heavy Duty Single Needle Long Cylinder Arm Lockstitch Industrial Sewing Machine With Table and Servo Motor
Consew 756R-3 Extra Heavy Duty Single Needle Long Cylinder Arm Lockstitch Industrial Sewing Machine With Table and Servo Motor
reseller raitng

Consew 756R-3 Extra Heavy Duty Single Needle Long Cylinder Arm Lockstitch Industrial Sewing Machine With Table and Servo Motor

SKU: 756R-3
Weight: 90 lbs
Vendor: Consew
Our Price: $5499.99
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

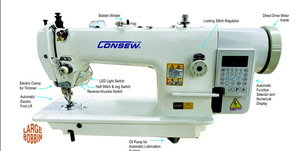

Consew 756R-3 Extra Heavy Duty Single Needle Long Cylinder Arm Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

Large Oscillating Shuttle Hook, Extra Long Arm 16 1/2" (420mm), Reverse Feed, Built-In Bobbin Winder, Cam Take-Up Lever, Heavy Balance Wheel, Extra High Foot Life 13/16" (20mm)

MACHINE APPLICATIONS:

  • Suitable for sewing heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
  • Appropriate for use in upholstery, footwear, leather, canvas industries
  • Designed for stitching such products as tents, sails, harnesses, tarpaulins, safety belts, parachutes, balloons, industrial bags, boots, book binding, auto, boat and furniture upholstery, sports and camping equipment, orthopedic appliances, suitcases, luggage,     ski boots, knapsacks, footwear and outerwear made of extra heavy duty materials
  • Recommended for sewing tubular and curved work
  • Designed for extra thick thread

MACHINE FEATURES:

  • Large oscillating shuttle hook
  • Extra long arm - 16½" (420mm) for R-3 version (15¾” -400mm for R version)
  • Reverse feed
  • Built-in bobbin winder
  • Cam take-up lever
  • Extra high presser lift for sewing extra heavy materials
  • Heavy balance wheel
  • A cloth plate for flat work available as optional equipment for all models
  • Triple Transport: bottom, top and needle feed (walking foot)

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Standard or Full Function:  Standard Functions
  • Needle: 7 x 3
  • Workspace:  Standard Workspace
  • Feeding Mechanism: Walking Foot
  • Work Space:  16 1/2" (420mm)
  • Stitch Length: 2 1/2 s.p.i. (10mm)
  • Speed, Max (S.P.M.):  800
  • Needle Bar Stroke: 56 2 13/64"
  • Presser Lift: 20mm 13/16"
  • Cylinder Diameter:  3 3/16" (81mm)

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
