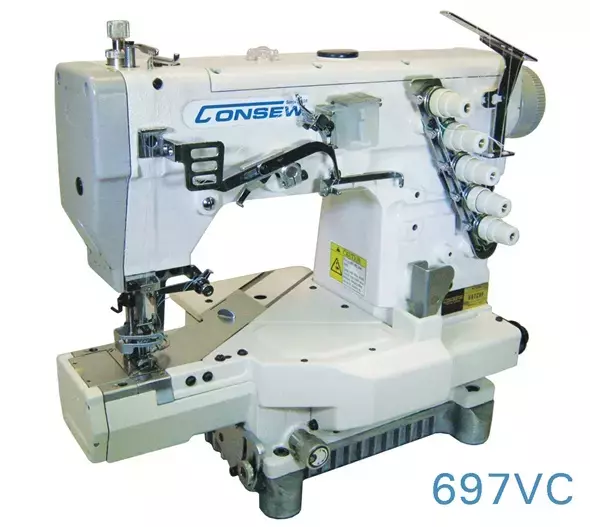

Consew 697VC High Speed Coverstitch Industrial Sewing Machine With Table and Servo Motor

Consew 697VC High Speed Coverstitch Machine With Table and Servo Motor Comes With Table, Legs, Servo Motor and LED Lamp

With Fully Automatic Lubrication, Differential Feed With Micrometric Adjustment, Pushbutton Stitch Regulator, Thread Lubricating And Needle Cooling System.

MACHINE APPLICATIONS:

• For sewing light to heavy-weight materials.
• Model 697VC – Cylinder-bed for general seaming
• Suitable for hemming, tape binding, elastic inserting, etc.

MACHINE FEATURES:

• Speed, Max. up to 6000 s.p.m.*
• Push-button stitch regulator
• External cooling of oil supply
• Fully automatic lubrication with visual flow controls
• Lubricating oil continuously filtered by replaceable filter
• Differential feed with micrometric adjustment for shirring and stretching.  Ratio up to 4 to 1.
• Intermittent action possible
• Standard type UY128GAS needles
• Silicone based needle cooling and thread lubricating
• CONFIGURATIONS:
  2 Needles,  2 Loopers,  4 Threads
  3 Needles,  2 Loopers,  5 Threads
• NEEDLES:  Comes with 3-needle, 5.6 mm
  (Optional Needle Gauges available)
  2 Needles:    3.2, 4.0, 4.8, 5.6, 6.4 mm
  3 Needles:    5.6, 6.4 mm
• MORE OPTIONS
  -UTA    • Under thread trimming device (pneumatic)
  -ST       • Top cover thread trimming device
  -UTM    • Under thread trimming device (electric)
  -W        • Thread wiper (electric)
  -EC       • Tape Cutter (electric)

MACHINE SPECIFICATIONS:

• Number of Needles: 2, 3
• Feeding Mechanism: Differential

• Standard or Full Function: Standard Functions
• Needle Bar Stroke: 31mm
• Workspace: Standard Workspace
• Differential Ratio: 1 : 0.3 ~ 1 : 2.9
• Needle Used: UY128GAS
• Speed, Max (S.P.M.): 6000
• Max Stitch Length: 1.4 ~ 3.6mm
• Presser Foot Lift: 7.0mm
• Two Needle
  Needle Distances: Comes with 3-needle, 5.6 mm
• Looper: 2
• Standard Distance Between Needles: 5.6mm 3-needle

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
