Consew 14TU2345 Coverlock Industrial Sewing Machine

Consew 14TU2345 Coverlock Sewing Machine

If you're ready to take your sewing to a new level, then you're ready for the Consew "Coverlock". It makes the decorative and professional touches easier than you ever thought they would be. The Consew "Coverlock" puts every feature or capability you could want at your fingertips.

MACHINE APPLICATIONS:

• For overedging and trimming various materials from lightweight fabrics such as chiffons, silk, suit lining, tricot, linen, cotton, general dress materials and woollens to heavyweight fabrics such as tweeds, coat cloth, jersey and denim
• Sew through denim as well as through the sheerest of fabrics without puckering
• Suitable for overedging such products as jackets, sweaters, dress and sports shirts, overalls, uniforms, jeans, work pants, dresses, jump suits, slips, negligees, pajamas, bathing suits, trousers and coats
• Suitable for general overedging, cross seaming, plain seaming, pintucking and braiding. You can ornament with pintuck or braid stitching and ornamental overlocking
• Perfect for sample rooms, alteration rooms, tailor's shops, drapery shops, dry cleaners, department stores, dress makers and the home

MACHINE FEATURES:

• Differential Feed
• Easy color coded threading
• Counterbalanced mechanism. Precision feet for smooth, vibration-free operation
• Telescoping thread mast (convenient extension spool holders)
• Adjustable stitch length dial
• High-rise looper mechanism with presser foot lift up to 5/32" (4.5 mm)
• Adjustable cutting width. Heavy duty top tungsten-carbide steel knife and lower carbon steel knife ensures sharp, clean cutting
• Easy thread tension control for any thickness of materials and any threads
• Needle guard prevents needle from bending or breaking when stitching heavyweight materials such as denim etc.
• Auto Tension Release
• Attachable Clean Pocket

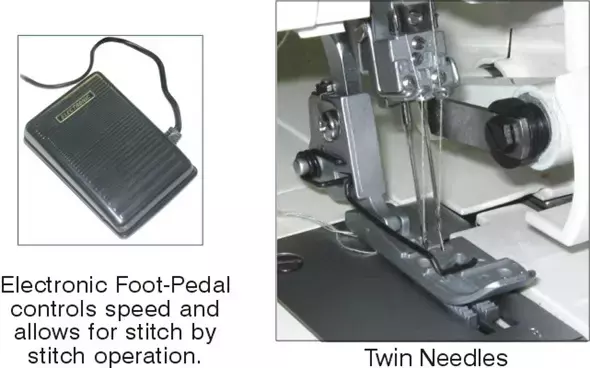

• Equipped with built-in motor, electronic foot-operated speed control
• Built-in LED sew light, ruler, handle and seam guide
• Removable cloth plate for cylinder operations

MACHINE SPECIFICATIONS:

• Number of Needles: 2 (Double)
• Standard or Full Function:  Standard Functions
• Needle Used: HAX1
• Workspace:  Standard Workspace
• Machine Weight: 15.5 lbs. (7.0kg)
• Feeding Mechanism: Differential
• Work Space:  10" (254mm)
• Clearance Under Presser Foot: 4.0 mm
• Differential Ratio: 0.5 min - 2.0 max
• Max. Stitch Length: up to 4mm
• Speed, Max (S.P.M.):  1200
• Stitch Type: Coverstitch - Safety Stitch
• Dimensions:Lv.300 mm x W.310 mm x H.320 mm
• Power: 110 vac (220 optional)
• Shipping Weight:21 lbs. (9.5kg)
• Seam Width: Left Needle: 5.2 - 6.7mm
• Motor: 110 vac (220 available)

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
