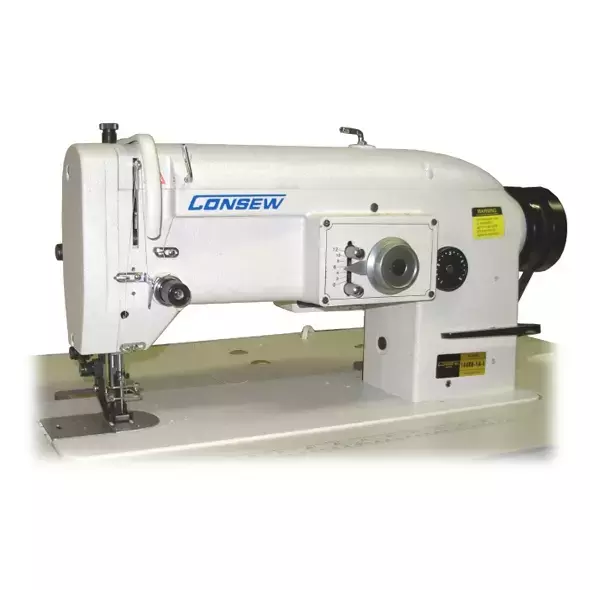

Consew 146RB-1A-1WS Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor
Consew 146RB-1A-1WS Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor
reseller raitng
Product Videos

Consew 146RB-1A-1WS Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

SKU: 146RB-1A-1WS
Weight: 1 lbs
Vendor: Consew
Our Price: $4999.99   Market Price: $7499.99
Save: $2500.00 per unit
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

Consew 146RB-1A-1WS  Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

Horizontal Axis Transverse Rotary Hook, Large Bobbin, Wide Zig-Zag, Reverse Feed

To change from 1A to 3A, the customer only has to change the vibrating cam in the back of the machine. The part number is CS606b.

MACHINE APPLICATIONS:

  • For sewing medium to heavy weight fabrics that are difficult to feed when sewn.
  • For such materials and products as wet suits, shoes, boots, leather, tarpaulins.
  • Federal Stitch 304
  • Wet Suit version available for sewing neoprene rubber

MACHINE FEATURES:

  • Large bobbin and horizontal axis transverse rotary hook
  • Wide zig-zag
  • Upper feed mechanism helps avoid slippage when sewing
  • Reverse stitching
  • Stitches per minute - 2500*
  • Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included).

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2500
  • Clearance Under Presser Foot: 25/64" (10mm)
  • Stitch Length: 5 s.p.i. (5mm)
  • Work Space: 10" (255mm)
  • Needle: 135 x 17
  • Bobbin: Metal 212O34-312 Pre-wound M
  • Needle Bar Stroke: 1-11/32" (34mm)
  • Bed Size: 7" 18 7/8" (178m x 480mm)
  • Hook: B79
  • Zig-Zag Stitch Width: 3/8" (9.5mm)

DOWNLOADS:

146RB Series Spec Sheet (PDF)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
